Stainless steel linear shower drain
Luxdrain STR: nine lengths from 40 to 120 cm, grade 304 stainless steel, a grate that takes a tile, and a 10-year guarantee.
One drain for most showers

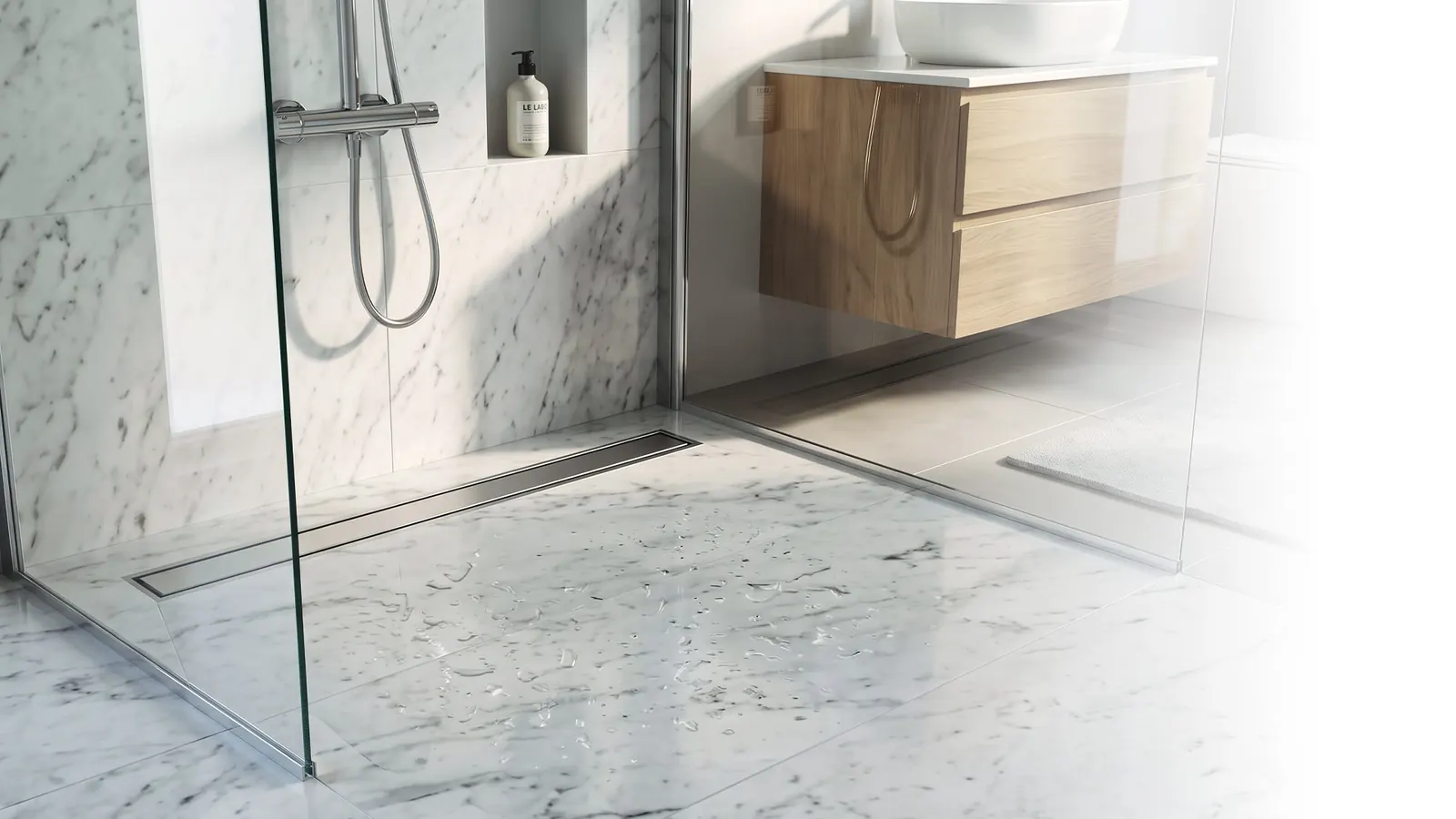

A linear drain collects water along one edge of the shower area, so the floor only has to fall in one direction. That lets you lay large tiles without cutting them into an envelope pattern, and build a shower level with the rest of the floor.
The Luxdrain STR is made for that kind of bathroom. Its stainless steel channel is 70 mm wide and comes in nine lengths, from 40 to 120 cm. The whole drain, trap included, is 75 mm high.
What sets the Luxdrain STR apart
Supplied as a complete set, ready to install.
-
Grade 304 stainless steel
The channel and grate are grade 304 stainless steel, which resists corrosion. Choose a brushed or a polished finish.
-
Reversible grate
Plain steel on one side, a recess for a tile insert on the other. Turn it to whichever side suits the floor.
-
Low trap
A polypropylene trap with a 30 mm water seal and a flow rate of 32 l/min. The whole drain, trap included, is 75 mm high.
-
Cleaned from above
Lift the grate and the trap is cleaned from above, without breaking up the floor.
-
Complete set
The set includes the channel, grate, trap, sealing collar, levelling feet and a reducer.
-
Made in Poland to EN 1253
The drain is made in Poland to the European standard EN 1253 and carries a 10-year guarantee.

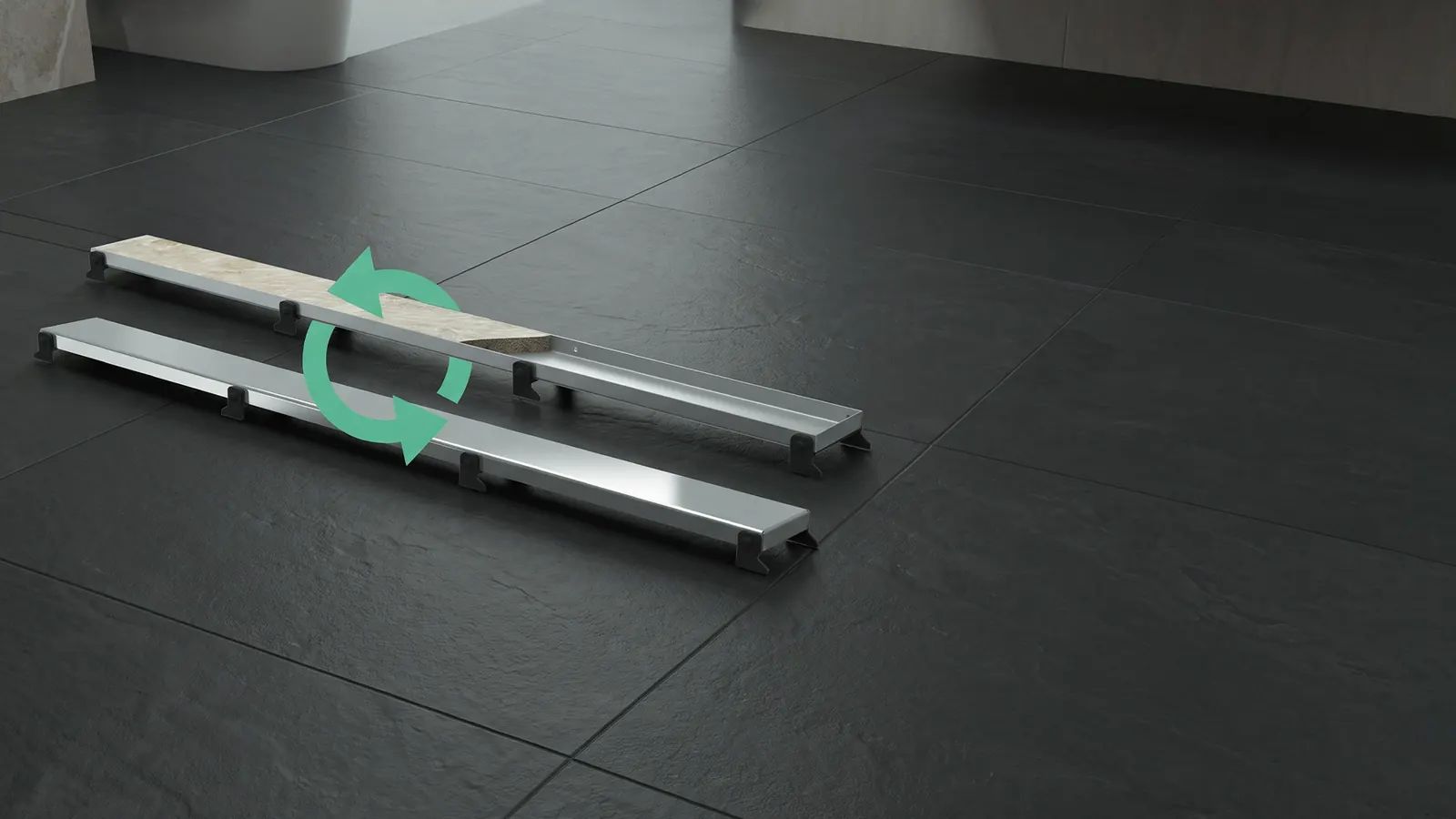

A grate you can turn over to take a tile
The Revers grate has two sides. The plain stainless steel side suits a bathroom where the drain is meant to show as a clean, deliberate detail. The other side has a recess for an insert of the same tile as the floor, leaving only a slim steel outline.
The choice is never final. The grate lifts out and turns over at any time.
Two steel finishes
Every length comes in both finishes. You choose the finish on the product page in the shop.
-
Polished
Mirror-polished steel. It catches the light and sits well next to shiny taps and fittings.
-
Brushed
Brushed, matt steel. Water marks show less on a matt surface.
A low trap, cleaned from above
The trap is flat and long, so the whole drain, trap included, is only 75 mm high. Its 30 mm water seal keeps drain smells out, and it carries 32 litres a minute.
To clean it, lift the grate: the trap is reached from above. The trap outlet is 40 mm across, and a reducer comes in the set.
Nine lengths, from 40 to 120 cm
Every drain is drawn to the same scale, with its 70 mm channel and grate, and all of them share the same trap. Pick a length to go to that drain in the shop, choose the finish and see the current price.
- 40 cm See the price: drain 40 cm
- 50 cm See the price: drain 50 cm
- 60 cm See the price: drain 60 cm
- 70 cm See the price: drain 70 cm
- 80 cm See the price: drain 80 cm
- 90 cm See the price: drain 90 cm
- 100 cm See the price: drain 100 cm
- 110 cm See the price: drain 110 cm
- 120 cm See the price: drain 120 cm
Specifications
The same for every length. Only the channel length changes.
| Item | Value |
|---|---|
| Channel length | 400 to 1200 mm |
| Channel width | 70 mm |
| Width with flange | 110 mm |
| Height with trap | 75 mm |
| Trap outlet | Ø 40 mm |
| Water seal | 30 mm |
| Flow rate | 32 l/min |
| Material | Grade 304 stainless steel |
| Finish | Brushed or polished |
| Trap | Polypropylene, cleaned from above |
| Standard | EN 1253 |
Figures from the product data at nowoczesnyprysznic.pl. Before you order, ask for the installation height for your floor build-up.
Technical drawing
Side view, plan and a section through the channel and trap. L is the channel length of the drain you choose.
Use it to plan the falls and the screed height. Fitting instructions come with the drain.

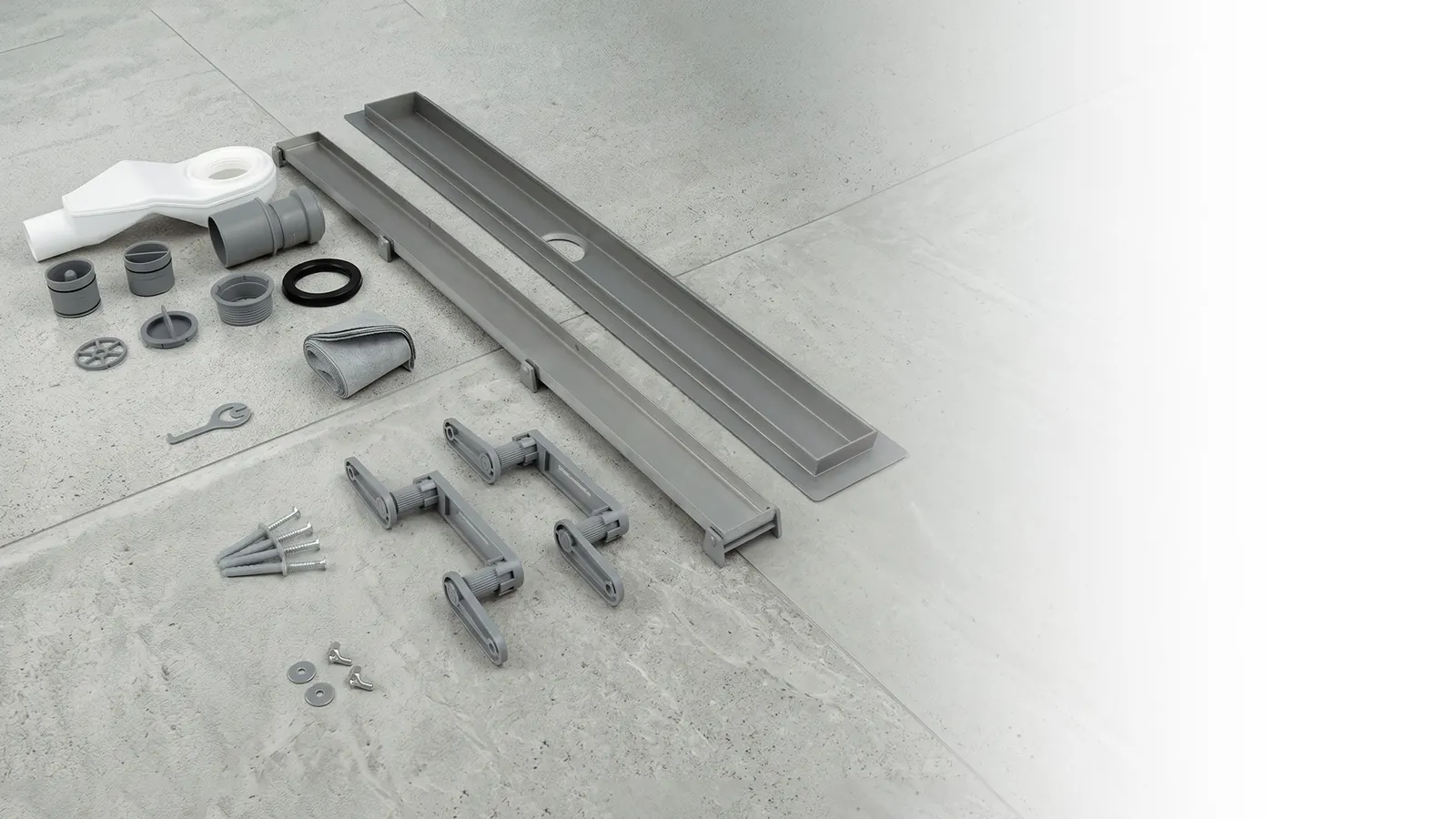

What comes in the set
Every Luxdrain STR is a complete set:
- stainless steel drain channel
- reversible Revers grate
- polypropylene trap
- sealing collar
- levelling feet
- reducer and fixings
The drain is packed in fully recyclable packaging.
How it goes in
The order of work, in outline. Full instructions come with the drain: follow them, and the instructions for your waterproofing system.
-
Set the height
Mark the finished floor level and level the channel on its adjustable feet.
-
Connect the trap
Connect the trap to the waste pipe, using the reducer from the set if you need it.
-
Screed and waterproof
Lay the screed with a fall towards the drain, then waterproof the floor, joining the waterproofing to the drain with the sealing collar.
-
Tile and fit the grate
Tile up to the edge of the channel, then fit the grate, steel side up or with a tile insert.
Questions we get asked
Not answered here? Call +48 601 692 728. Open on working days, 8:00 to 16:00 (Polish time).
Can the grate take a tile?
Yes. The Revers grate is reversible. One side is plain steel, the other has a recess for a tile insert, so only a slim steel outline shows in the floor.
How is the trap cleaned?
From above. Lift the grate to reach the trap, without breaking up the floor.
How high is the drain?
The whole drain, trap included, is 75 mm high. Your tile and adhesive add to that, so call +48 601 692 728 for the exact installation height for your floor.
Which length should I choose?
One that suits the shower area, most often along a wall or across the entrance. Lengths run from 40 to 120 cm, in 10 cm steps.
Is the trap included?
Yes. The set includes the channel, grate, trap, sealing collar, levelling feet and a reducer.
What guarantee does it have?
10 years.
Where can I buy the Luxdrain STR?
From the Polish online shop nowoczesnyprysznic.pl, which sells and ships it.
Choose your length and finish
The Luxdrain STR is sold by nowoczesnyprysznic.pl. Call if you have questions and we will help you choose.
